AIRdesign VOLT2 EN/LTF C
-
¥26000
原价:¥30000
设计特点:
Design Details
New Geometry
The VOLT2 features race lines, highlighting a completely new line-geometry thatprovides aline reduction. On each line level there are now just 2 main-lines (2A, 2B,2C), which reduces the total line length (29m/10% @size M), reduces drag, andgreatly improves performance.
OutstandingPerformance
Our newly designed airfoil is one of the key elements to the VOLT2’s classleading performance. The glider remains extremely balanced in moving air anddemonstrates improved climbing characteristics, especially in headwind tasks.These efficiencies mean you’ll be delighted to be arriving at your destinationfaster and higher than ever before.
Riser
The VOLT2’s riser system has been developed specifically to provide bestperformance under acceleration, and features ergonomic rear riser steeringloops. Bar pressure has been reduced, and you will immediately recognise thatbar travel in its entirety provides usable speed without the ever presentthreat of dropping off.
• Shark-Nose
• VORTEX HOLES® at the tips and outside cell trailing edgeswork to diffuse vortex drag by releasing redundant pressure, which is furtherimproving performance.
• Nose-Wires are polyamide rods in the leading edge keep theprofile in perfect shape and improve stability and launch characteristics.
• Double 3D-Cut upper sail and 3D-Cut lower sail
• Razor-Edge L/E - A specially designed trailing edge whichoptimises the profile and reduces drag.
• Cross-Straps
• Mini-Ribs, in the trailing edge improve surface finish andreduce drag.
• Ingenious Rib and V-Rib-System
• Ultra-new line geometry and line reduction
技术数据:
SIZES | XS | S | SM | M | L |
AREA FLAT (m²) | 21,20 | 23,07 | 24,79 | 26,39 | 28,58 |
AREA PROJECTED (m²) | 17,95 | 19,53 | 21,00 | 22,35 | 24,20 |
SPAN FLAT (m) | 11,46 | 11,96 | 12,40 | 12,79 | 13,31 |
SPAN PROJECTED (m) | 8,93 | 9,31 | 9,65 | 9,96 | 10,36 |
ASPECT RATIO FLAT | 6,2 | 6,2 | 6,2 | 6,2 | 6,2 |
ASPECT RATIO PROJ. | 4,44 | 4,44 | 4,44 | 4,44 | 4,44 |
CELLS | 59 | 59 | 59 | 59 | 59 |
TOTAL LINE LENGTH | 243 | 253 | 262 | 271 | 282 |
TOTAL LINES | 174 | 174 | 174 | 174 | 174 |
LINE DIAMETERS | 0.7/0.8/0,9/1,1/1,3/1,5/1,7 | ||||
WEIGHT (kg) | 5 | 5,3 | 5,6 | 5,9 | 6,3 |
V-TRIM/V-MAX (km/h) | 37/55 | 37/55 | 37/55 | 37/55 | 37/55 |
LTF/EN CATEGORY | C* | C* | C* | C | C* |
TAKE OFF WEIGHT (kg) | 60-75 | 70-85 | 80-95 | 85-105 | 100-125 |
Materials Standard Version:
Sail: Top Sail: DOMINICO - DOKDO-30DMF(WR) 40 Gramm Bottom Sail: DOMINICO - N20DMF(WR) 35 Gramm Ribs: Dominico 30D hard | Lines: Top lines: EDELRID 8000/U-070,090,130 Middle lines: EDELRID 8000/U-130,190 Main lines: EDELRID 8000/U-230,280,360
|
Risers: 13mm Aramid with Polyester covered - LIROS | Maillons: 4,3mm JOO-TECH/Korea |

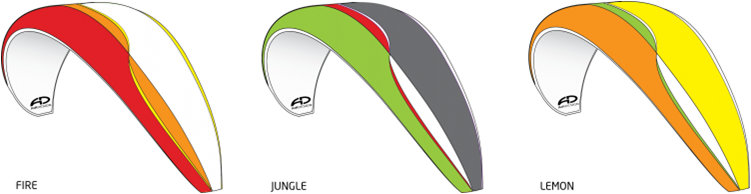

颜色:红色、绿色、黄色
You can design your ownglider using our custom colour picker. Stand out from the gaggle with your owncolour combination.
To get a quote and estimated delivery time for your custom colour simply copyand email the linkof the colourpicker to your local distributor.
