AIRdesign RAMA Flex DGAC

¥22000 原价:¥38000
Set up for a forward and the RAMA Flex came right over head and was reallystable with little to no roll effect in mild bumps. Very nice.

详情描述

设计特点:

•    Set up for a forward and the RAMA Flex came right over head and was reallystable with little to no roll effect in mild bumps.  Very nice.

•    I flew the RamaFlex this morning. What a great wing! You've got a winner here!Even before hooking up to the trike, I could tell it was light and well built.Quick and easy inflation and the wing tip steering is very maneuverable! Loveit!

•    I am VERY impressed! I have not been able to do no wind forwards forseveral years. These 76.5 year old legs just couldn't hack it anymore. Thevendor hype says "remarkably easy to forward and reverse launch in nilwind conditions". OK, let's see about that. On 1st & 2nd launches windwas about 2 mph. I did successful reverses! Flew in both reflex & normal,steering with wing tip & then brake toggles. In reflex it steers muchbetter with wing tip steering. Brake toggles very effective in normal trim. Thelanding was equally amazing! I thought "there's no way I can run that faston landing" I came in “hot" hands up, and was really moving. I pulleddown on the brakes about 10cm. The wing leveled off, slowed down & when Iburied them I touched down in a medium speed run out. I couldn't believe it soI did it again with the same results. Man, what a wing! I never thought I wouldever want to own a full reflex wing.

Technical Details

SIZES

XS

S

M

L

AREA FLAT (m²)

20.50

23.80

26.50

28.60

AREA PROJECTED (m²)

17.63

20.37

22.68

24.48

SPAN FLAT (m)

9.35

10.70

11.29

11.75

SPAN PROJECTED (m)

7.39

8.48

8.95

9.32

ASPECT RATIO FLAT

4.23

4.81

4.81

4.81

ASPECT RATIO PROJ.

3.18

3.53

3.53

3.53

CELLS

49

49

49

49

TOTAL LINE LENGTH

349

379

400

416

TOTAL LINES

124

124

124

124

LINE DIAMETERS

1.1/1.4/1.5/1.8

WEIGHT (kg)

5.0

5.4

5.9

6.3

V-TRIM/V-MAX (km/h)

37/57+

37/57+

37/57+

37/57+

LTF/EN CATEGORY

EN-926-1

DGAC

DGAC

DGAC

TAKE OFF  WEIGHT (kg)

88-110*

108-135*

124-155*

* weight  including motor


Material:

Sail:

Top Sail: Porcher Skytex 40

Bottom Sail: Dominico 30D

Ribs: Dominico 30D hard

Pulleys:  RILEY RM302

Maillons:  JOO TECH–Korea


Lines:

Upper line : Liros DSL70

Middle line
 A and B :  Liros PPSL200
 C and D : Liros PPSL120

Main line
 A and B : Edelrid 7343-280
 C and D : Edelrid 7343-190

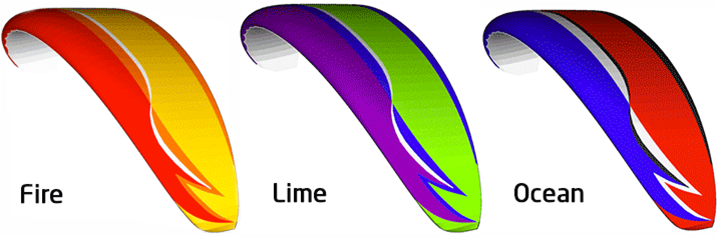

颜色:
