NEW POLINI THOR 190
-
¥30000
原价:¥0

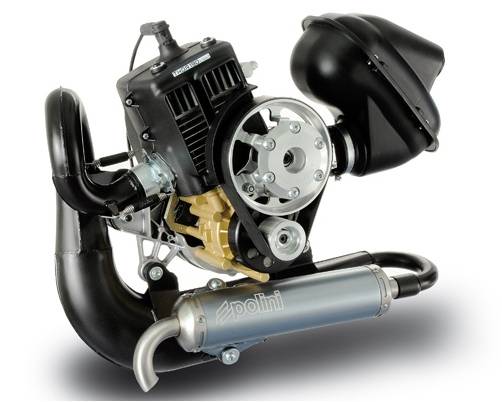

It’s atwo stroke 193cc engine, with really reduced weight of 13,2 kg, transmissionwith belt gearing-down, compact dimension but powerful. It has been designed tomeet the needs of the “pilots” who are willing to use a really performingengine of reduced weight. Project and approval required many tests and manyhours of flight to grant the best performance and safety requirements. For themost exigent pilots a model with electric starter and a model with centrifugalclutch and flash starter are available.
TECHNICAL FEATURES
PURE TECHNOLOGY
Polini Thor 190 engine features advanced technical solutions; dimensions, powertorque ratio, reduced vibrations, performance of climb, innovative and compactdesign, but, above all, everything has been studied to grant the bestweight-power ratio, studying every single part in order to reduce its weight.
TRANSMISSION

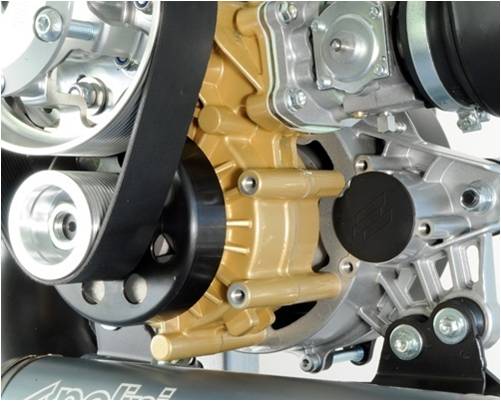

Belt transmission with 2,83 reduction ratio. To reduce vibrations a new crankshaftwith distributed and optimized rotating weights has been designed for thisspecific transmission system. In order to resist to the belt strength, aspecial bearing has been housed on the transmission case side. It can stand atransversal load 10 times higher than the standard roller bearings. It lets thebelt have a constant stretch.
SPECIFIC POWER UNIT
The power unit with 193cc displacement, 64mm bore and 60mm stroke, is cast inlight alloy. It offers the maximum performance with 27 hp power at 7400rev/min. even at the maximum working temperature. The cylinder liner has anickel-chrome coating for the best piston sliding. The piston is gravitydie-cast in light alloy at high silicon content with 2 chromed and nitridesteel rings.
EXHAUST SYSTEM
The exhaust system is completely hand made for a better product quality. Themuffler has been designed to achieve a compact design, contained dimensions andto reduce its weight. The reduced overall dimensions improve the aerodynamicand grant a low noise level.
BETTER COOLING
The forced air cooling system grants a better air cooling, optimizing theperformance and maintaining fixed- temperature.
ELECTRIC STARTER
Thor 190 Light is also available with electric starter. This model is alsoprovided with a battery charger and one 12V socket for the flight instruments.This engine weights 15,3 kg.
FIXING SYSTEM
The frame-engine fixing points of the Polini Thor 190 Light are exactly thesame as the other engines: Thor 130, Thor 200 and Thor 250.
The other two models of Thor 190 Light engine are:
- THOR 190 LIGHT WITH CENTRIFUGAL CLUTCH
Thor 190 Light is also available with the centrifugal clutch studied to grantthe maximum safety features during the engine preparation, take-off, flight andlanding. This model weights 14,4 kg. It includes the Flash starter.
- THOR 190 LIGHT WITH ELECTRIC STARTER
Thor 190 Light is also available with electric starter without centrifugalclutch. This model includes the battery charger and a 12V electric connectionfor the flight instruments. This model weights 14,9 kg.
Part numbers and public prices:
· 928.000.024-Thor 190 Light:Euro 2.180,00+VAT
· 928.000.025-Thor 190 LightCentrifugal clutch: Euro 2.450,00+VAT
· 928.000.026-Thor 190 LightElectric starter: 2.520,00+VAT
· 928.000.027-Thor 190 Lightclutched version with electric starter: euro 2.720,00 + VAT
TECHNICAL LIST
THOR 190 Light
Polini Engine | 2 stroke monocylinder |
Cooling | Forced air |
Bore for stroke | 64 x 60 |
Displacement | 193 cm3 |
Power | 27 HP a 7400 R.P.M. |
Cylinder | Aluminum with Gilnisil coating |
Compression ratio | 11,4:1 |
Piston | Two chromium plated rings mm 1 |
Intake | Reed valve in the crankcase |
Carburetor | Walbro |
Air filter | Air box |
Ignition | Electronic with inductive discharge |
Battery charger prearrangement | Output power 80 W at 5500 RPM (with electric starter only) |
Spark plug hood | 5k Ω resistance |
Fuel type | Lead free petrol with 2% synthetic oil |
Gear reduction unit | Belt transmission with 2,83 reduction ratio |
Starter (Option electric starter) | Pull starter with self-winding rope. |
Clutch | Dry centrifugal (for model with clucth only) |
Muffler | Expansion with aluminum silencer |
Engine weight | 13,6 Kg - 14,4 Kg with clutch - 14,9 Kg with electric starter |
Propeller rotation | Counterclockwise |
