The Ozium is an incredibly lightweight XC pod harness for pilots who need a compact and lightweight solution for adventure flying. The Ozium concept and design was thoroughly proven during the 2013 RedBull X-Alps, the toughest and most brutal adventure ra

详情描述

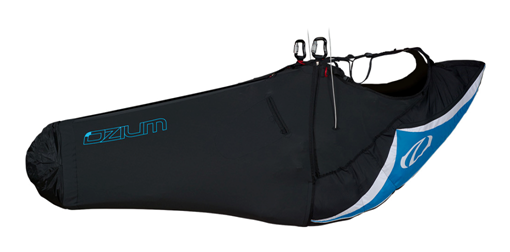

THE OZIUM HARNESS

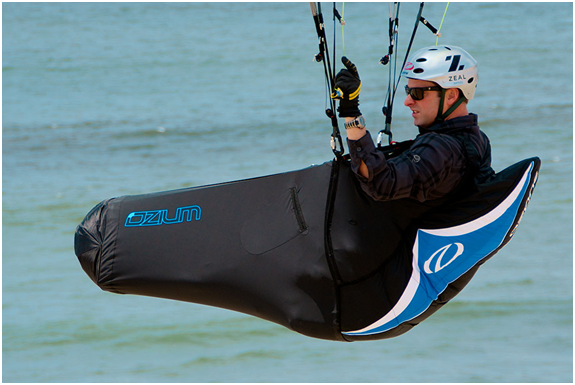

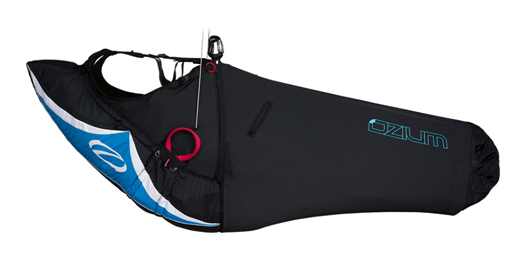

The Ozium is an incredibly lightweight XC pod harness for pilots who needa compact and lightweight solution for adventure flying. The Ozium concept anddesign was thoroughly proven during the 2013 RedBull X-Alps, the toughest andmost brutal adventure race in the world. Ozone Team Pilots flew the Ozium forlong XC flights in intense Alpine conditions, and carried it through the heartof the Alps for days on end. We have taken the X-Alps competition prototype andadded a bit more durability and user-friendliness, making it an excellentchoice for pilots seeking a lightweight pod system that is comfortable andfeatures a very low pack volume. The total weight of the Ozium comes in at just2.6kg.

CONSTRUCTION & DESIGN:

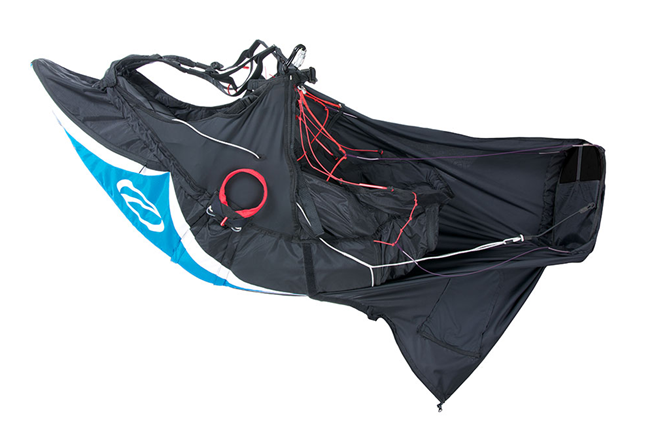

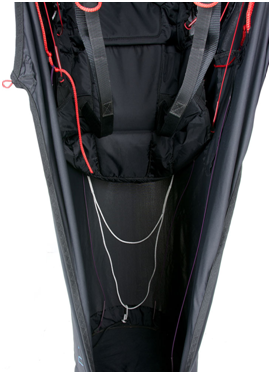

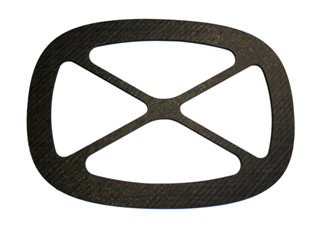

The Ozium’s seatboard-free design not only cuts weight dramatically, butalso provides a moderated sensitivity in the air. The carbon-fiber footplate isa rigid and comfortable anchor point for weight shifting and maneuvering insidethe harness. With the pod length adjusted properly, the Ozium is flown with avery relaxed body position, allowing the pilot to recline effortlessly into theback-section of the harness with hammock-like support from shoulders to heels.This relaxed body position is key for long XC flights, as proven by the Ozoneteam in the X-Alps race.

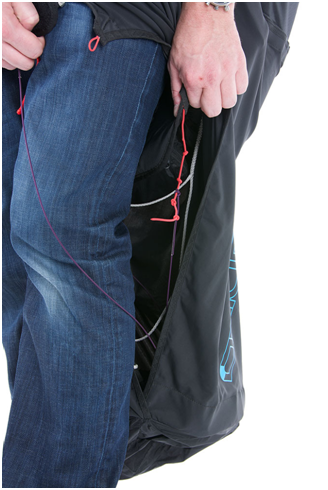

An integrated speed-baris included with the Ozium, and the glider-attachment side is leftintentionally long in order to allow pilots to route it through the glider’sspeed system if desired. If you choose to use the traditional Brummel-hooksystem, simply trim the speed system to the desired length.

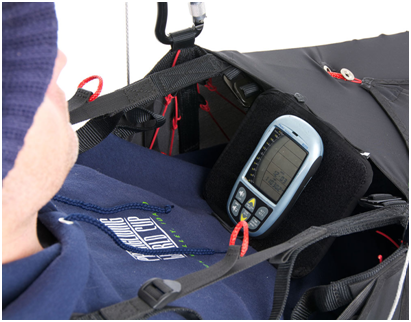

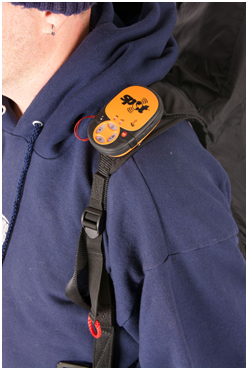

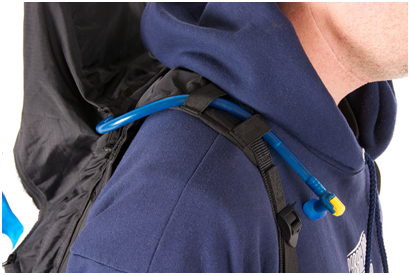

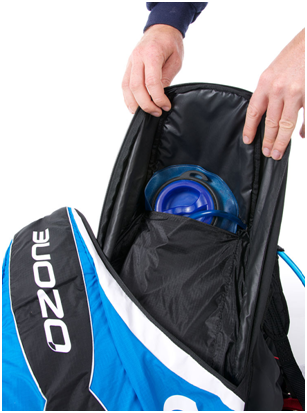

The Ozium also includes a lightweight integratedcockpit, for instruments, and a hydration access system consisting of an inner pocketin the back of the harness with an opening and anchor points for your hydrationtube. On the opposite shoulder strap, there is a lightweight vario or SPOTmounting point.

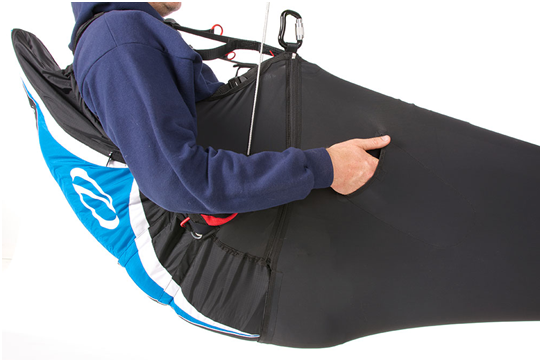

The main surfaces of the harness are built froma durable 210 denier ripstop which we have been using for various applicationsfor several years. The pod is made from a flexible lycra-like material whichrequires a certain amount of care, but should last for several seasons of use.The pod is also a fully replaceable part of the harness. The load bearingstructure of the Ozium is made from 25mm webbing, a standard and very reliablematerial. In addition to the main storage pocket, there is a storage pocketbeneath the seat and on both sides of the harness which feature a loop tosecure items.

BACK-FOAM:


The Ozium is sold with the option of an LTF certified back-foam, and alighter thinner back-foam which saves 190g. Although both versions are ENcertified, we recommend the LTF version for all but the most light-obsessed pilots.Lightweight aluminium carabiners are included.

REAR-INTEGRATEDRESERVE COMPARTMENT:

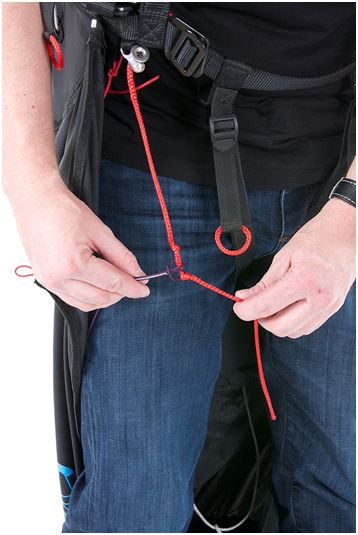

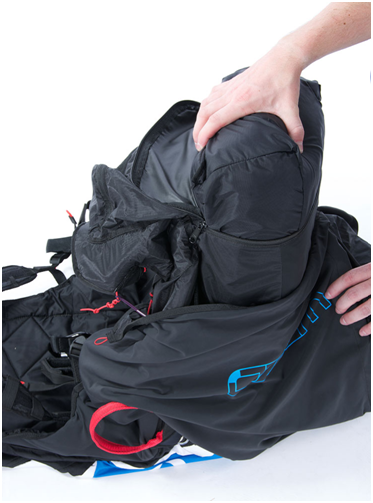

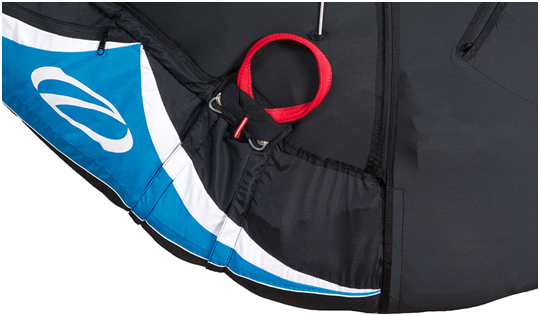

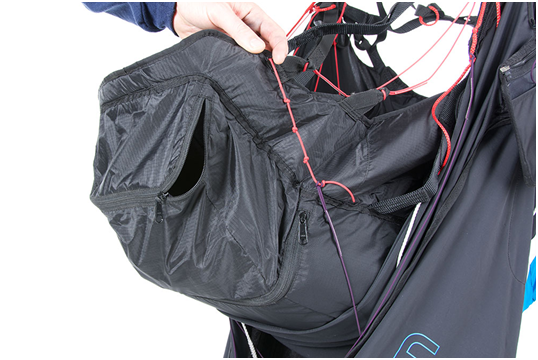

An integrated reserve compartment is key to the Ozium’s comfort and easeof use. The compartment will fit reserves up to 5L in volume, which is enoughfor modern Rogallo designs, or the Angel 140. To help your reserve fitproperly, a reserve “diaper bag” comes standard with every Ozium. Thedeployment system is efficient and easy to operate, with a sliding double nylonrod system. The handle is well secured, but easy to deploy. The Ozium comeswith ultra-light reserve bridles included.

ADJUSTMENTS:

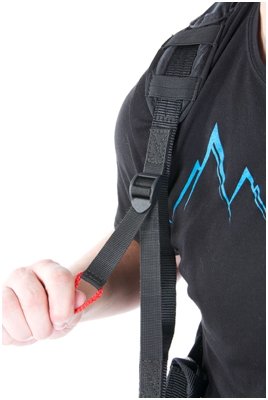

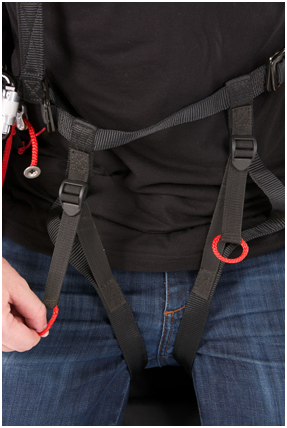

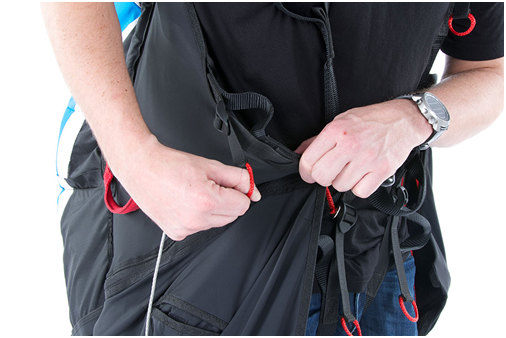

Several parts of the Ozium can be adjusted in flight, including theshoulder straps, lower back-strap, and legs. However, it is important tocarefully adjust the Ozium in a simulator prior to your first flight. We do notrecommend making extensive adjustments to the seat-height (red lines). Thelength of the pod should be adjusted to your measurements before flying.

RECOMMENDED SIZING

Body Size (cm)

Harness

Pod

160-176

M

S

175-182

M

M

181-189

L

M

188-198

L

L

SPECIFICATIONS



M/S

M/M

L/M

L/L

Pilot Height

cm

160-176

175-182

181-189

188-198

Weight of Harness with Alu Carabiners (2 pcs),  Bridle-Line, Rescue Handle & Inner Containerir

kg

1.49

1.49

1.51

1.51

LTF Foam

kg

0.54

0.54

0.54

0.54

Lightweight Foam

kg

0.35

0.35

0.35

0.35

Weight of  Speedbag incl. Speed System Line

kg

0.38

0.4

0.4

0.42

Weight of Carbon  Foot Board

kg

0.1

0.1

0.1

0.1

Weight of Cockpit

kg

0.07

0.07

0.07

0.07

Total weight harness with LTF foam

kg

2.58

2.6

2.62

2.64

Total weight harness with lightweight foam

kg

2.39

2.41

2.43

2.45
