AIRdesigh RIDE 2 Tandem

¥26000 原价:¥0
LTF/EN B类伞头。

详情描述

设计特点:

•The leading edge is supported by polyamide rods, which ensure a constantinflation and good take-off behaviour over the full lifespan of the wing.

•Optically, the leading edge is outstandingly aerodynamically clean, whichproduces a performance advantage in flight. The RIDE2 is equivalent inperformance to high-end LTF/EN-B solo gliders.

•The RIDE2’s trimmers allow for positive or negative trim range options. Withtrimmers open for light loading and in stronger conditions - or closed whenhigher wing loadings, the RIDE2 will deliver consistent and comfortable flyingcharacteristics throughout the entire weight range.

•The line layout utilises a combination of sheathed Dyneema and Aramid lines tomaximise stability and durability throughout the life of the wing. The uppercascade is designed with increased line attachment points also with theintegral element of longevity in mind.

•Spreader bars come standard with dual hang points

•Split A-risers for easy big-ears

•3D-Cut for a more efficient nose-shape and enhanced performance

•RazorEdge technology reduces drag at the trailing edge

Techincal Details

SIZE

38

41

AREA FLAT (m²)

37,95

41,00

AREA PROJECTED (m²)

31,96

34,56

SPAN FLAT (m)

13,97

14,58

SPAN PROJECTED (m)

10,99

11,4

ASPECT RATIO FLAT

5,14

5,19

ASPECT RATIO PROJ.

3,78

3,76

CELLS

48

48

TOTAL LINE LENGTH

410

428

TOTAL LINES

266

266

LINE DIAMETERS

0.95/1.4/1.8/2.4

WEIGHT (kg)

7,8

8,5





V-TRIM/V-MAX (km/h)

39/45*

39/45**





LTF/EN CATEGORY

EN/LFT-B

EN/LFT-B





TAKE OFF WEIGHT (kg)

120-190

130-220





* at 170kg





** at 190kg





Materials:

Sail:

Top Sail: Dominico 30D (40g)

Bottom Sail: Dominico 30D

Ribs: Dominico 30D hard

Lines:

Top lines:  LIROS DSL70

Middle lines: LIROS PPSL200

Main lines: Edelrid 6843-340, 7343-280

Risers:     25mm nylon webbing

Maillons:  JOO Tech, 4mm triangle

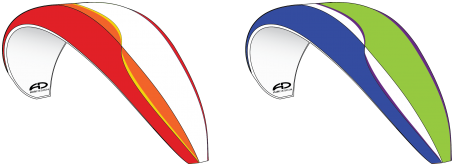

颜色:红白、蓝绿
